The Lineup

Ten models, from the 24′ Speedster to the 50′ Shaman. Every Apache is built to its owner's specifications, with hand-painted artwork, graphics, instrumentation and cockpit design as individual as the person at the helm.

10 models24′–50′ LOAHand-laid composite hulls

Length overallFeet

50′

50′ Apache® ShamanShaman

The tribal leader of Apache® Powerboats

Stand-up or sit-downCabinUp to 9 occupants

LOA: 50′ 6″
Beam: 8′ 2″
Fuel: 450 gal.
Draft: 54″
Power: Teague or Mercury · twin or triple

The tribal leader of Apache® Powerboats

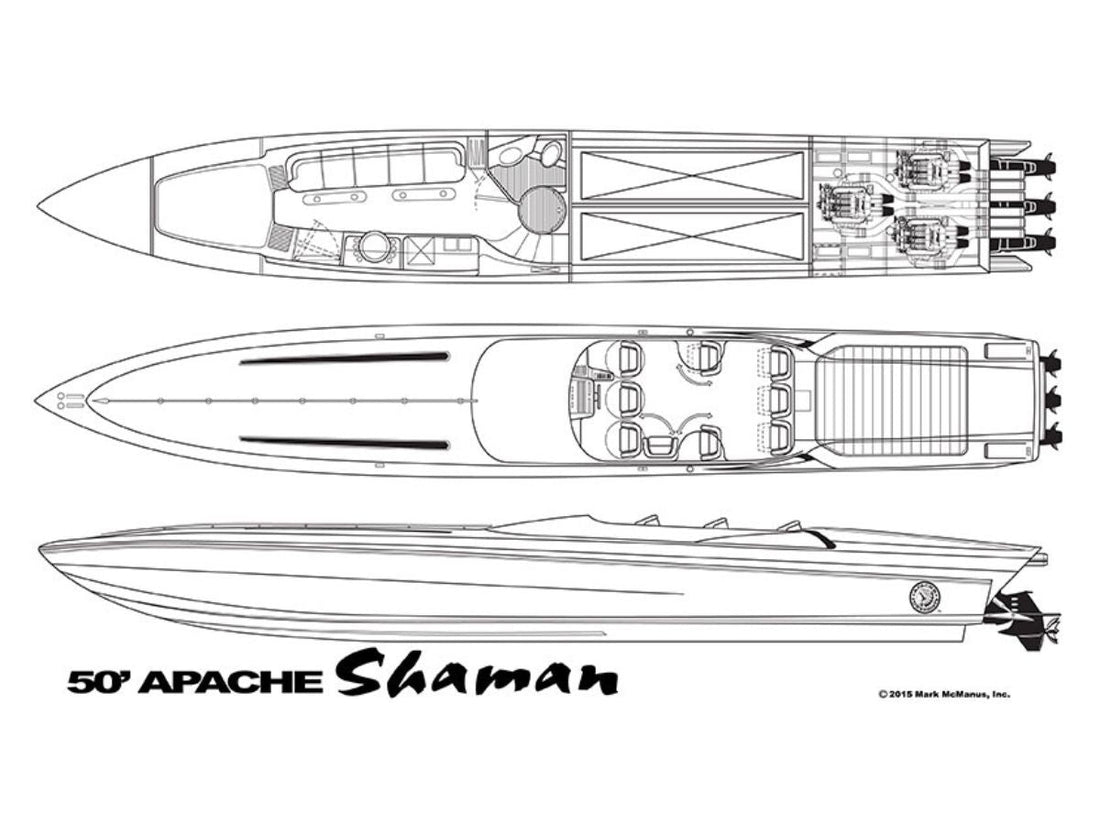

50′ Shaman

The 50’ Apache® Shaman is the largest, most powerful and most elegant Apache® ever offered. It seems supernatural in the way it transforms the harshest offshore environment into a pleasurable experience, offering a stable and secure ride through even the roughest sea conditions. It features stand-up or sit-down flexibility for an amazing 9 occupants, including an elegant cabin arrangement with a full galley, enclosed head, various entertainment options and v-berth. Whether you are cruising the Keys or the Mediterranean, the Shaman is the tribal leader of Apache® Powerboats and, like all McManus creations, it can’t be duplicated.

Specifications

LOA: 50′ 6″ (15.39 m)
Beam: 8′ 2″ (2.48 m)
Fuel Capacity: 450 gal. · 5 tanks (1702.9 L)
Draft (Stern Drive Down): 54″ (137.16 cm)

Engine Options

Teague Custom Marine or Mercury Marine available upon request.
(Twin or Triple engine configurations are available.)

Features & Equipment

Construction Features

Hand laid composite; 100% Kevlar49 with vinylester resin; McManus custom weave design and lamination schedule with high density coring
3-year hull warranty
Hull and deck Kevlar bonded together

Standard Equipment

Battery box: heavy-duty billet Optima aluminum powder coated (3)
Bilge blowers: 3” Flexmount (3)
Bilge pumps: Rule 2000, submersible (3)
Dash panels: aluminum, anodized, polished and laser engraved
Engine hatch: automatic
Engine race mounts: Mercury Racing, steel, front and rear (3)
Engine room light: Halogen (3)
Engine room: primed in gelcoat and finished in Awlgrip
Engine tie-bar: 316 stainless steel; clevis joint; external
Fasteners: stainless steel grade 18-8 with self-locking nuts throughout
Fenders (6)
Fender hangers: stainless steel (6)
Fuel filters: Teague billet aluminum with water separators (3)
Fuel pumps: Aeromotive electric (3)
Fuel tanks: heavy-duty, baffled aluminum; foamed and bolted in position with stainless steel pickups (5)
Propellers: Mercury 4-blade, stainless steel (3)
Rub rail: 2 1/16” white neoprene with stainless steel insert
Sea strainers: heavy-duty cast stainless steel (3)
Silencer: stainless steel; air operated
Spare prop mounts (3)
Steering system: Latham Marine
Sun pad with Apache Powerboat logo
Throttles and shifts: Latham Marine
Tonneau cover for cockpit and engine room: custom designed and fitted Acralon
Transom: step notch with pad keel
Trim planes: Mercury 280 Sport K-Planes (1 set)
Water pickup: transom mounted, stainless steel, adjustable (3)

Cockpit and Cabin

Beverage holders
Bolsters: forward stand-up or sit-down bolsters; rear bolster/bench seat
Cabin carpet: removable
Cockpit carpet: removable
Cockpit flooring: marine grade rubber
Cockpit refrigerator: AC/DC
Cockpit seating area for 8-9 people
Electric outlet: 110 v.
Head: enclosed; stainless steel sink; electric toilet
Holding tank: 20 gal.
Galley: stainless steel sink, AC/DC refrigerator and storage
Hand rails: billet aluminum
Helm: centerline
Ice cooler: removable
Lighting: LED; cabin ceilings and cockpit courtesy; Airpax circuit breaker
Mirror
Stereo system: audio entertainment with cassette or CD player; acoustic speakers (6 total; 2 in cabin; 4 in cockpit)
Storage area for dock lines, anchor and fenders
Water tank (fresh) and pump; 20 gal.

Mechanical Function Instruments

Autometer gauges with custom anodized and polished bezels. Choice of white, silver or black face instruments.

Tachometer (3)
Hour Meter (3)
Oil Pressure (3)
Oil Temperature (3)
Fuel Pressure (3)
Fuel (tank tender, 5-tank system)
Water Temperature (3)
Trim Indicator for Outdrives & Trim Tabs
GPS Speedometer
Voltmeter (3)
Engine Warning System (3)
Detonation Meter (3)

Deck Rigging

Cleats: stainless marine; recessed, stainless steel (8)
Deck rail: powder coated
Fuel fills: flush; stainless steel; 2” (5)

12 Volt DC Electric

12 v. power outlet
Batteries: Optima heavy-duty marine (3)
Battery charger: automatic, 30 amp with 50’ shore power cord
Parallel solenoid and battery distribution switches (3)
Terminals, lugs, butt splices and connectors: locking design, nylon insulated
Wiring and cable: marine grade (UL) tinned copper, specifically designed for marine racing environment; color coded wiring throughout (legend provided)

Navigation and Safety

Air horn: Watsco hand-held
Anchor: Fortress chock mounted aluminum with rubber coated chain and 100’ nylon double braided anchor line
Compass system: Raymarine electronic analog
Cushion: throwable, Type 4 Permafloat
Dock lines: nylon double braided; choice of color (8)
Fire extinguisher system: Fireboy FE-241, automatic discharge, engine room
Fire extinguisher: 1A-10BC hand-held with 13’ range, cockpit mounted (2)
Flare kit
Fog bell
Horn: Alpex 12 v.
Lights: LED international navigation
Vests: Lifeline type 3, high performance (6)
VHF marine radio

47′

47′ Apache® TomahawkTomahawk

The Rough Water Weapon of Choice

Sit-downLow profile

LOA: 47′ 2″
Beam: 8′ 2″
Fuel: 460 gal.
Draft: 54″
Power: Teague or Mercury · twin or triple

The Rough Water Weapon of Choice

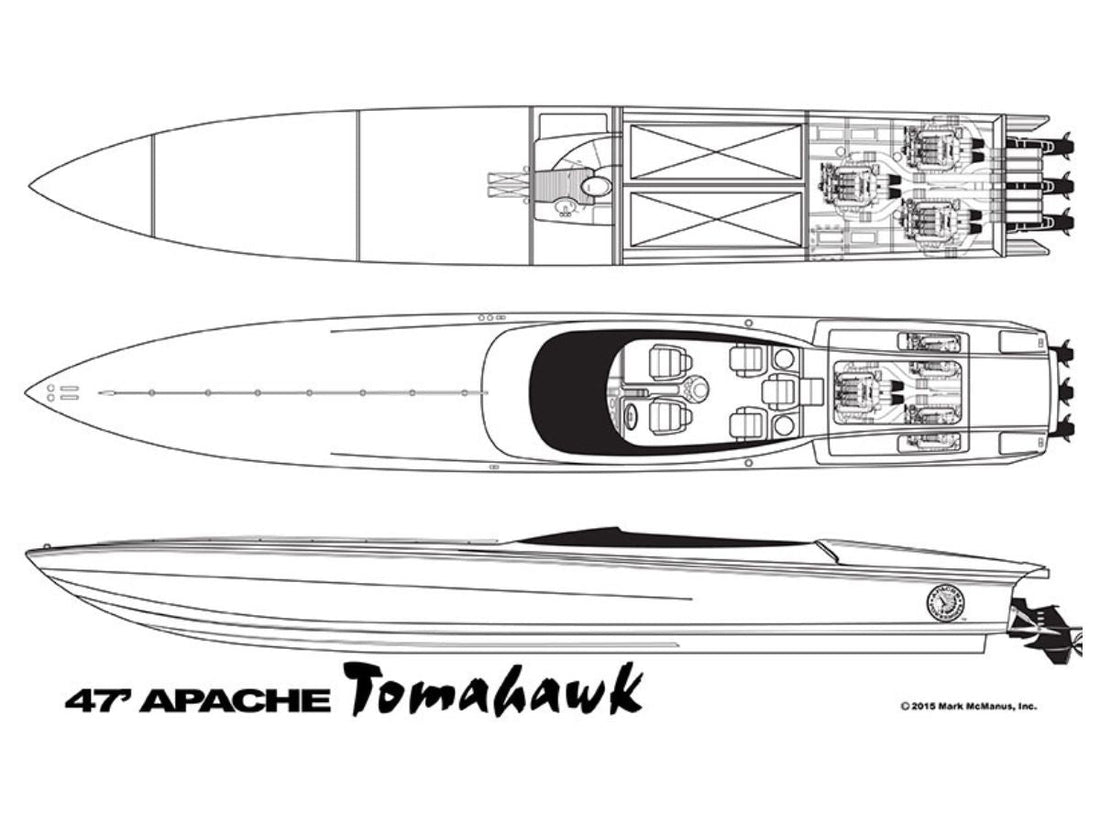

47′ Tomahawk

When the sea gets rough, the Apache® 47′ Tomahawk gets going. Forged from the legacy of three offshore world championships, this low-profile, sit-down machine is purpose-built to dominate punishing conditions with speed and style. Its shallow profile minimizes resistance and maximizes average speed, especially when things get wild offshore.

From its centerline-balanced performance to its customizable engine hatch configurations, the Tomahawk is ready for battle. This is more than a boat, it’s a tactical strike on the competition.

Specifications

LOA: 47′ 2″ (14.37 m)
Beam: 8′ 2″ (2.48 m)
Fuel Capacity: 460 gal. · 5 tanks (1740.8 L)
Draft (Stern Drive Down): 54″ (137.16 cm)
Displacement: 15,300 lbs. (6,940 kg) · twin engine
Deadrise: 24°

Engine Options

Teague Custom Marine or Mercury Marine
Twin or Triple engine configurations available

Features & Equipment

Construction Features

Hand-laid 100% Kevlar49 composite with vinylester resin
McManus custom weave and lamination schedule
Hull and deck Kevlar bonded
3-year hull warranty

Standard Equipment

Transparent or sun pad fiberglass molded engine hatch (automatic)
Optima aluminum powder-coated billet battery boxes (2)
Latham Marine steering, throttles, and shifts
Aeromotive electric fuel pumps (2), Teague billet filters
Mercury stainless steel 4-blade props (2)
Rule 2000 bilge pumps and Flexmount blowers
Mercury 280 S K-Planes
Stainless steel sea strainers, silencers, and tie-bars
Engine room finished in Awlgrip, halogen lighting
Spare prop mounts (2), foam-secured baffled aluminum fuel tanks
Custom Acralon tonneau cover
Step-notch transom with pad keel
Optional V-tail composite wing

Cockpit and Cabin

Forward racing bolsters and rear bench for 5
Marine-grade rubber flooring and removable carpet
LED courtesy lighting
Fusion or CD/cassette audio with 6 speakers
Ice cooler and removable storage areas
Billet aluminum handrails
Helm located at port

Mechanical Instruments

Autometer anodized, laser-engraved bezel gauges
Tachometer (2), Hour Meter (2), Oil Temp (2), Oil Pressure (2)
Fuel Pressure (2), Fuel Level (3-tank tender), Water Temp (2)
Trim indicators, GPS speedometer, Voltmeter (2)
Engine warning system, Depth finder (Raymarine electric)
White, silver, or black gauge face options

Deck Rigging

Recessed stainless cleats (8)
Powder-coated deck rail
Flush stainless fuel fills, 2″ (3)
White neoprene rub rail with stainless insert

12V DC Electric

Dual Optima heavy-duty marine batteries
30-amp automatic charger with 50′ shore power cord
Parallel solenoid and distribution switches
Color-coded, UL-listed, marine-grade tinned copper wiring
Custom switch panel, locking terminals and connectors

Navigation and Safety

Raymarine analog compass, Icom VHF marine radio
LED international nav lights, Alpex 12v horn
Air horn, fog bell, flare kit
Fortress anchor with coated chain and 100′ braided line
Lifeline Type 3 vests (6)
Fireboy FE-241 automatic system, plus two handheld extinguishers
Throwable Type 4 Permafloat cushion
Nylon double braided dock lines (8)

47′

47′ Apache® LongbowLongbow

Triple Engines. Triple Digit Speeds. Total Control.

CabinCenterline helm

LOA: 47′ 2″
Beam: 8′ 2″
Fuel: 450 gal.
Draft: 54″
Power: Teague or Mercury · twin or triple

Triple Engines. Triple Digit Speeds. Total Control.

47′ Longbow

If you’re into rapid transport, the 47′ Apache® Longbow is your weapon of choice. Designed from a hull that claimed three Offshore World Championships, the Longbow is built to deliver power and stability in equal measure. Equipped with twin or triple engine configurations, it’s designed to run triple-digit speeds while tracking true through rough offshore conditions.

The Longbow seats up to five passengers in bolstered comfort, with a centerline helm and a refined cabin that includes a galley, AC/DC fridge, optional enclosed head, and cockpit seating for 5–6. Whether you’re launching into the Gulf or crossing deep water at speed, the Longbow delivers the elite performance Apache® is known for—plus the luxury to match it.

Specifications

LOA: 47′ 2″ (14.37 m)
Beam: 8′ 2″ (2.48 m)
Fuel Capacity: 450 gal. · 5 tanks (1702.9 L)
Draft (Stern Drive Down): 54″ (137.16 cm)
Displacement (Estimated): 15,700 lbs. (7,121 kg)
Deadrise: 24°

Engine Options

Teague Custom Marine or Mercury Marine
Twin or Triple Engine Configurations Available

Features & Equipment

Construction

100% Kevlar® 49 laminate with vinylester resin
McManus custom weave and high-density core schedule
Hand-laid composite construction
Kevlar-bonded hull and deck
3-year hull warranty

Standard Equipment

Mercury Racing engine mounts (3)
Aeromotive fuel pumps and Teague billet filters (3 each)
Five baffled aluminum fuel tanks with stainless pickups
Stainless steel rub rail, silencers, and sea strainers
Latham Marine steering, throttles, and shifters
Mercury 280 Sport K-Planes
Sun deck with embroidered Apache® logo
Custom tonneau covers, spare prop mounts, tie-bar system
Recessed transom shower with 6′ hose and 20-gallon freshwater tank
Custom Optima battery boxes (x3)

Cockpit & Cabin Features

Forward racing bolsters and rear bench seat
Removable cockpit and cabin carpets
Marine-grade rubber flooring
AC/DC cockpit refrigerator, stainless steel galley sink
Optional enclosed head
Seating for 5–6 passengers
Billet aluminum handrails
Removable ice cooler
LED lighting, Airpax circuit breakers
110V outlet
Stereo system with 6 acoustic speakers (2 cabin, 4 cockpit)
Storage for dock lines, anchor, fenders
20-gallon freshwater tank with pump

Instrumentation & Controls

Autometer gauges with polished, anodized bezels. Gauge face options: white, silver, or black.

Tachometers (3)
Hour meters (3)
Oil pressure & temperature (3 each)
Fuel pressure (3)
5-tank fuel tender system
Water temperature (3)
Trim indicators (outdrives and tabs)
GPS speedometer
Voltmeter (3)
Engine warning system (3)
Detonation meters (3)

Navigation & Safety Equipment

Raymarine electronic compass
VHF marine radio
Fireboy FE-241 automatic engine room system
Two handheld fire extinguishers
Lifeline Type 3 vests (6)
Flare kit, fog bell, Alpex 12V horn
LED navigation lights
Fortress anchor with 100′ double-braided nylon line
Eight color-matched dock lines
Type 4 throwable cushion

Deck Rigging & Electrical

Recessed stainless marine cleats (8)
Powder-coated deck rail
Three 2″ flush stainless fuel fills
Optima marine batteries (3)
30-amp automatic battery charger with 50′ shore power cord
Marine-grade, color-coded tinned copper wiring
Parallel solenoid and distribution switches
Nylon-insulated locking terminals and connectors
12V power outlet

42′

42′ Apache® DiabloDiablo

A Beast of Balance, Speed, and Style

Sit-downSeats 5

LOA: 42′ 3″
Beam: 8′ 2″
Fuel: 300 gal.
Draft: 42″
Power: Twin Mercury Racing · 700 or 1100 HP

A Beast of Balance, Speed, and Style

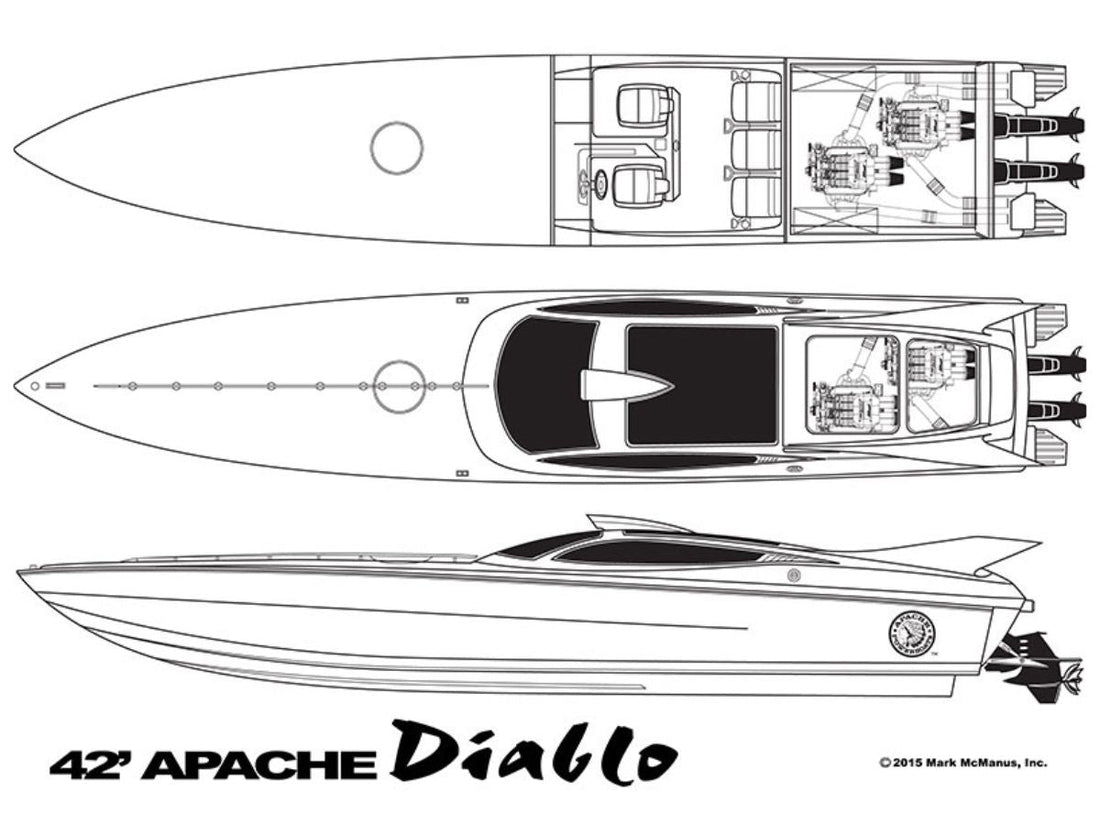

42′ Diablo

The 42′ Apache® Diablo is a 5-person sit-down performance machine built for dominance and comfort. Its sleek low-profile design slashes wind resistance, allowing it to cut through offshore conditions with aggressive acceleration and commanding stability. The Diablo combines raw twin-turbo power with racing pedigree, wrapped in signature Apache® craftsmanship. This is the boat that doesn’t blink in the face of a storm. Sit down, hold tight, and take control.

Specifications

LOA: 42′ 3″ (12.87 m)
Beam: 8′ 2″ (2.48 m)
Fuel Capacity: 300 gal. · 3 tanks (1135.3 L)
Draft (Stern Drive Down): 42″ (106.68 cm)
Displacement (Estimated): 11,250 lbs. (5,103 kg)
Deadrise: 24°

Engine Options

Twin Mercury Racing, 700 HP, dry sump M-6 drives
Twin Mercury Racing, 1100 HP twin turbo, dry sump M-8 drives

Features & Equipment

Construction Features

100% Kevlar49 composite, hand-laid with vinylester resin
McManus custom weave and high-density cored lamination
Kevlar-bonded hull and deck
3-year limited hull warranty

Standard Equipment

Engine hatch: fiberglass molded with automatic lift
Billet Optima battery boxes (2), anodized and powder coated
Bilge blowers (2) and Rule 2000 bilge pumps (3)
Dash panels: anodized, polished aluminum, laser engraved
Engine room: finished in Awlgrip with LED lighting
Mercury Racing engine race mounts (2)
Stainless steel tie-bars, fasteners, and silencer
Teague billet fuel filters, Aeromotive fuel pumps (2)
Fuel tanks: aluminum, baffled, foam-secured (3)
Mercury 5-blade stainless props (2)
Sea strainers: stainless steel (2)
Hydraulic racing steering
Mercury 280 S K-Planes
Optional composite V-Tail
Acrylic tonneau cover for cockpit and engine room
Step-notch transom with pad keel

Cockpit Features

Recaro front and rear racing bolsters
Seating for 5, LED courtesy lighting
JL Audio stereo with 6 acoustic speakers
Marine-grade rubber flooring, removable cockpit carpet
Billet handrails, port-side helm
Ice cooler and dock line storage
Optional sun pad

Mechanical Instruments

Autometer anodized, laser-engraved gauge bezels. Choice of black, white, or silver face.

Tachometer (2), Hour Meter (2)
Oil Temp & Pressure (2 each)
Fuel Pressure (2), Fuel Level (3-tank system)
Water Temp (2), GPS Speedometer
Trim Indicator, Voltmeter (2)
Depth Finder (digital)
Engine Warning System (2)

Deck Rigging

Stainless steel recessed cleats (8)
Powder-coated deck rail
Flush stainless steel 2″ fuel fills (3)
Neoprene rub rail in white or black

12 Volt DC Electric

Dual Optima marine batteries
30 amp battery charger with 25′ shore cord
Parallel solenoid and distribution switches
Marine-grade, UL-rated, color-coded wiring
Nylon-insulated, locking connectors

Navigation and Safety

Icom VHF marine radio
Raymarine digital compass
LED navigation lights, Alpex 12 v. horn
Watsco handheld air horn, flare kit, fog bell
Lifeline Type 3 performance vests (6)
Fireboy FE-241 automatic suppression system
Two handheld extinguishers (cockpit mounted)
Anchor: Fortress aluminum with coated chain and 100′ braided line
Dock lines: double braided nylon (8), color choice
Throwable Permafloat cushion

42′

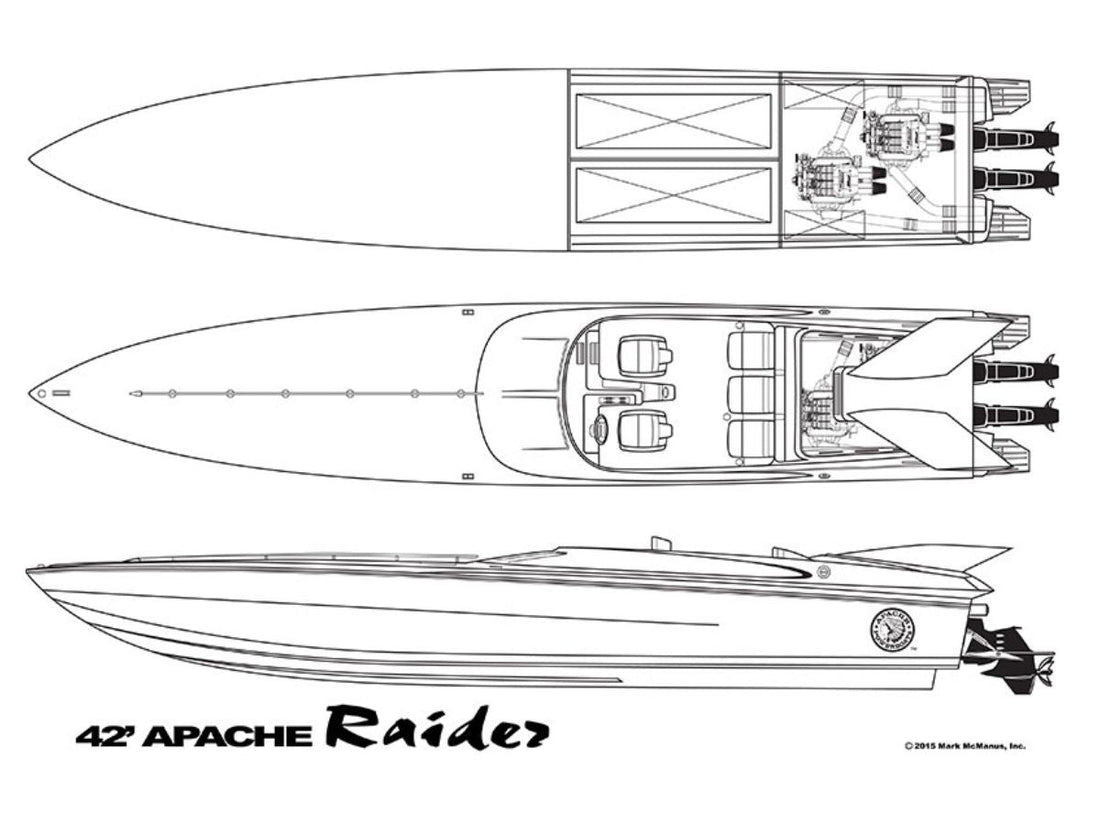

42′ Apache® RaiderRaider

Low Profile. High Impact. Zero Limits.

Sit-downSeats 5

LOA: 42′ 3″
Beam: 8′ 2″
Fuel: 300 gal.
Draft: 42″
Power: 700 or 1100 HP

Low Profile. High Impact. Zero Limits.

42′ Raider

The 42′ Apache® Raider is the ultimate sit-down offshore weapon, purpose-built for performance and comfort in equal measure. Designed for five occupants, its signature V-tail wing provides enhanced aerodynamics and lift, allowing the boat to fly across heavy seas with ease. Its low-profile hull reduces wind resistance, while the full sit-down cockpit and centerline balance deliver control and confidence at high speeds.

With custom hatch options—including sun pad, transparent glass, or hybrid configurations—the Raider is as bold as your imagination. Whether you’re gearing up for a poker run or just making your presence known at the dock, this model delivers unmistakable Apache® attitude with race-winning pedigree.

Specifications

LOA: 42′ 3″ (12.87 m)
Beam: 8′ 2″ (2.48 m)
Fuel Capacity: 300 gal. · 3 tanks (1135.3 L)
Draft (Stern Drive Down): 42″ (106.68 cm)
Displacement (Estimated): 11,250 lbs. (5,103 kg)
Deadrise: 24°

Engine Options

700 HP with Dry Sump M-6 Outdrives
1100 HP with Dry Sump M-8 Outdrives

Features & Equipment

Construction

100% Kevlar® 49 hand-laid laminate with vinylester resin
McManus custom weave and lamination schedule
High-density core
Kevlar-bonded hull and deck
3-year hull warranty

Standard Equipment

Mercury Racing engine mounts (2)
Aeromotive fuel pumps and billet filters (2 each)
Three baffled aluminum fuel tanks with stainless pickups
Stainless steel rub rail, silencers, and sea strainers
Hydraulic racing steering
Digital Mercury Racing throttles and shifters
Mercury 280 S K-Planes
Optional composite V-Tail wing
Automatic fiberglass-molded sun pad engine hatch
Removable tonneau covers
Heavy-duty billet battery boxes for Optima (2)
Flush-mount deck hatches (2)
Step notch transom with pad keel

Cockpit Features

Forward racing bolsters and rear bench
Marine-grade rubber flooring
Removable cockpit carpet
Cockpit seating for 5 passengers
Port-side helm
Billet aluminum handrails
Removable ice cooler
LED courtesy lighting
JL Audio 6-speaker sound system
Storage for fenders, anchor, and dock lines

Instrumentation & Controls

Autometer gauge suite with anodized and polished bezels. Gauge face options: white, silver, or black.

Tachometers (2)
Hour meters (2)
Oil pressure and temperature (2 each)
Fuel pressure (2)
Water temperature (2)
3-tank fuel tender system
Voltmeter (2)
Depth finder (digital)
GPS speedometer
Trim indicators (drives and tabs)

Deck Rigging & Electrical

Stainless recessed cleats (8)
Powder-coated deck rail
Flush-mount stainless fuel fills (3)
Optima marine batteries (2)
Automatic 30-amp battery charger with 50′ shore power cord
Parallel solenoids and distribution switches
Marine-grade UL tinned copper wiring (color-coded)
12V power outlet
Locking nylon-insulated terminals and connectors

Navigation & Safety

Raymarine electronic compass
Icom VHF marine radio
Fireboy FE-241 automatic fire suppression system
Two handheld 1A-10BC fire extinguishers
Lifeline Type 3 high-performance life vests (6)
Watsco handheld air horn, Alpex 12V horn
Flare kit, fog bell
Fortress aluminum anchor with 100′ braided nylon line
Eight nylon double-braided dock lines (color options)
Type 4 throwable cushion
LED international navigation lights

42′

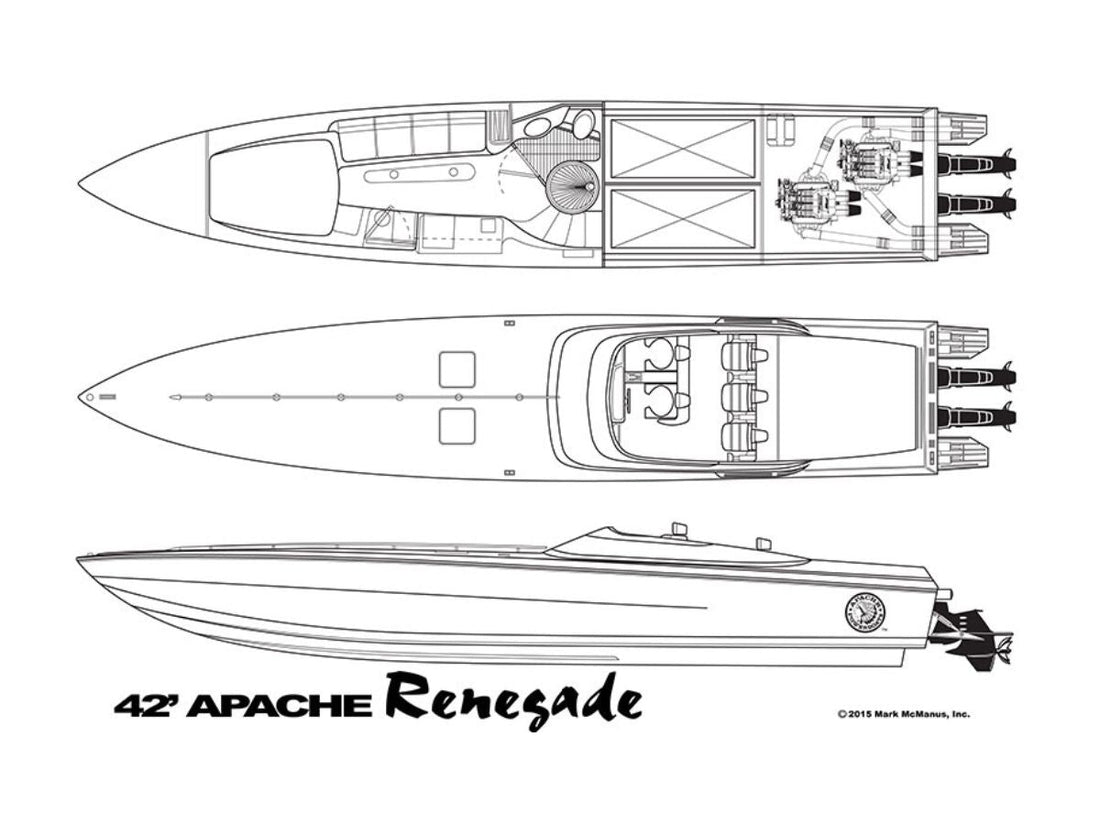

42′ Apache® RenegadeRenegade

Born from a legend. Built to conquer.

Stand-upCabin5-person cockpit

LOA: 42′ 3″
Beam: 8′ 2″
Fuel: 300 gal.
Draft: 42″
Power: Twin Mercury Racing · 700 HP and up

Born from a legend. Built to conquer.

42′ Renegade

The Apache® 42’ Renegade takes the DNA of the legendary 41’ Apache® and reimagines it for modern offshore dominance. Designed by Mark McManus, this high-performance stand-up model features a 5-person cockpit, staggered engine configuration, and a full cabin—delivering the perfect balance of raw power, comfort, and control.

With triple-digit speed potential and the ability to push through challenging sea states, the Renegade is built for serious offshore adventures, poker runs, and overnight escapes. Every detail—from the precision Kevlar® and carbon fiber laminate construction to the custom options for engine hatches—reflects Apache Powerboats® heritage and commitment to craftsmanship.

Specifications

LOA: 42′ 3″ (12.87 m)
Beam: 8′ 2″ (2.48 m)
Fuel Capacity: 300 gal. · 3 tanks (1,135.3 L)
Draft (Stern Drive Down): 42″ (106.68 cm)
Displacement (Estimated): 11,300 lbs. (5,125 kg)
Deadrise: 24°

Engine Options

Choose from high-output Mercury Racing engine packages.

Twin 700 HP with Dry Sump M-6 outdrives
Twin 1100 HP Twin Turbo with Dry Sump M-6 outdrives
Twin 1350/110 Dual Cal HP Twin Turbo with Dry Sump M-8 outdrives
Twin 1550/1350 Dual Cal

Features & Equipment

Construction & Performance

Hand-laid composite using 100% Kevlar® with vinylester resin
Optional 40% carbon fiber laminate for reduced weight and increased strength
McManus custom weave with high-density core construction
Kevlar-bonded hull and deck for seamless strength
3-Year limited hull warranty
Designed to deliver high-speed stability over long-range offshore runs

Standard Features

Billet aluminum battery boxes and polished dash panels
Mercury Racing engine race mounts with external tie-bar
Fiberglass automatic engine hatch
Hydraulic racing steering system
Mercury 280 Sport K-Planes trim tab system
Custom cockpit and engine room tonneau cover
Stainless 5-blade Mercury propellers
Stainless steel fittings, sea strainers, and silencers
JL Audio Fusion stereo system with 6 speakers

Cockpit & Cabin Features

Forward racing bolsters and rear bench for 5–6 occupants
Centerline helm with precision Autometer instrumentation
Galley with stainless sink, AC/DC refrigerator, and storage
Removable cabin and cockpit carpeting
Marine-grade rubber cockpit flooring
Optional enclosed head
LED interior and cockpit lighting
Ice cooler, handrails, and fresh water tank with pump
Dock line and fender storage built in

Instrumentation & Electrical System

Twin tachometers, hour meters, and full engine monitoring
Fuel system with 3-tank digital gauges
Garmin GPS speedometer, depth finder, voltmeters, trim indicators
AGM marine batteries with 30 amp onboard charger
Parallel solenoids, battery distribution switches
Color-coded marine-grade (UL) wiring with labeled diagram

Navigation & Safety Gear

Fireboy FE-241 automatic fire suppression system
Two hand-held fire extinguishers, flare kit, and fog bell
Aluminum anchor with 100’ nylon line
Navigation lighting, 12v horn, and Watsco air horn
Garmin Digital compass system
Lifeline high-performance vests (6 included)
VHF marine radio
Nylon dock lines (8), fenders, and mounting hardware included

Speed Meets Versatility in the Apache® Renegade

Built for offshore dominance with the capability for comfortable overnight trips, the Apache® 42’ Renegade is a world-class high-performance powerboat that delivers a secure, exhilarating ride across thousands of miles. From racing runs to island-hopping getaways, the Renegade brings a new level of confidence to every journey.

38′

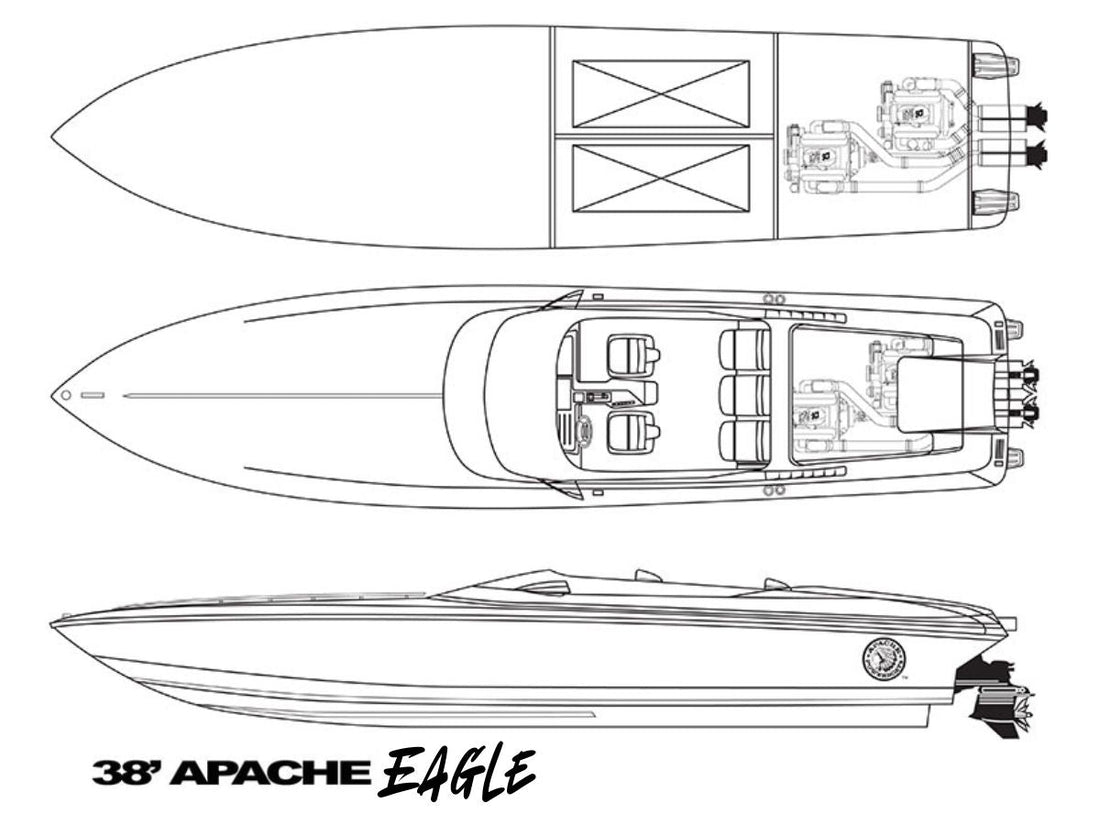

38′ Apache® EagleEagle

Built to Soar — The Offshore Predator

Sit-downDay boatSeats 5

LOA: 38′ 2″
Beam: 8′ 2″
Fuel: 225 gal.
Draft: 40″
Power: Twin Mercury Racing · 565–700 HP

Built to Soar — The Offshore Predator

38′ Eagle

The Apache® 38’ Eagle is a sleek, sit-down offshore predator with attitude. Its low-profile design means faster acceleration, enhanced fuel efficiency, and less stress on its twin staggered Mercury Racing engines. With seating for 5, a rugged deep-V hull, and 225 gallons of fuel capacity, the Eagle is a purpose-built day boat for high-speed domination.

This is no sleeper. This is an Apache®.

Specifications

LOA: 38′ 2″ (11.63 m)
Beam: 8′ 2″ (2.48 m)
Fuel Capacity: 225 gal. · 2 tanks (851.47 L)
Draft (Stern Drive Down): 40″ (101.6 cm)
Displacement (Estimated): 8,600 lbs. (3,900 kg)
Deadrise: 24°

Engine Options

Twin Mercury Racing 565 HP with Bravo One XR ITS Outdrives
Twin Mercury Racing 600 HP with Bravo One XR ITS Outdrives
Twin Mercury Racing 700 HP with Dry Sump M6 Outdrives

Features & Equipment

Construction Features

Hand-laid composite with biaxial and triaxial S-glass laminate
High-density coring for strength
Bonded hull and deck
3-year limited hull warranty
Kevlar & Carbon Fiber Laminate options available

Standard Equipment

1 piece molded fiberglass engine hatch
Powder-coated billet battery boxes (2)
LED-lit engine room finished in Awlgrip
Twin Mercury Racing engine mounts, stainless steel tie-bar
Mercury 280 Sport K-Planes
Adjustable stainless steel water pickups
Billet fuel filters, Aeromotive electric fuel pumps
Twin baffled aluminum fuel tanks, foam-secured
Mercury stainless steel propellers
Sea strainers and silencers in stainless steel
Tonneau cover (custom-fit Acralon)
Race full hydraulic steering system
Optional sun pad available
Stainless steel fasteners throughout

Cockpit

Forward racing bolsters with rear bench seating for 5–6
Marine rubber flooring and removable cockpit carpet
Removable ice cooler
Billet aluminum handrails
Fusion audio system
LED courtesy lighting
Port helm configuration
Ample storage for dock lines, fenders, and anchor

Instrumentation

Gauges by Mercury Racing
Twin: tachometers, voltmeters, oil temp/pressure, fuel pressure
Twin: water temperature, fuel level, hour meters
GPS speedometer, trim indicators, depth finder, engine warning system
Choice of faceplate color: white, silver, or black
Garmin Chartplotter

Deck Rigging

Stainless marine recessed cleats (8)
Powder-coated deck rail
Flush-mount 2″ stainless fuel fills (2)
Neoprene rub rail with stainless steel insert

12V DC Electrical

Dual AGM marine batteries
Automatic 20-amp battery charger with 25’ shore power cord
Battery distribution switches and parallel solenoid
Color-coded marine-grade tinned copper wiring

Navigation & Safety

VHF marine radio
Raymarine analog compass system
Aluminum anchor with 100’ braided line
Type 3 high-performance vests (5)
Fireboy FE-241 automatic fire suppression system
Two handheld fire extinguishers
LED international navigation lights
Alpex 12v horn, air horn, flare kit, fog bell
Throwable Permafloat cushion
Nylon braided dock lines (8)

38′

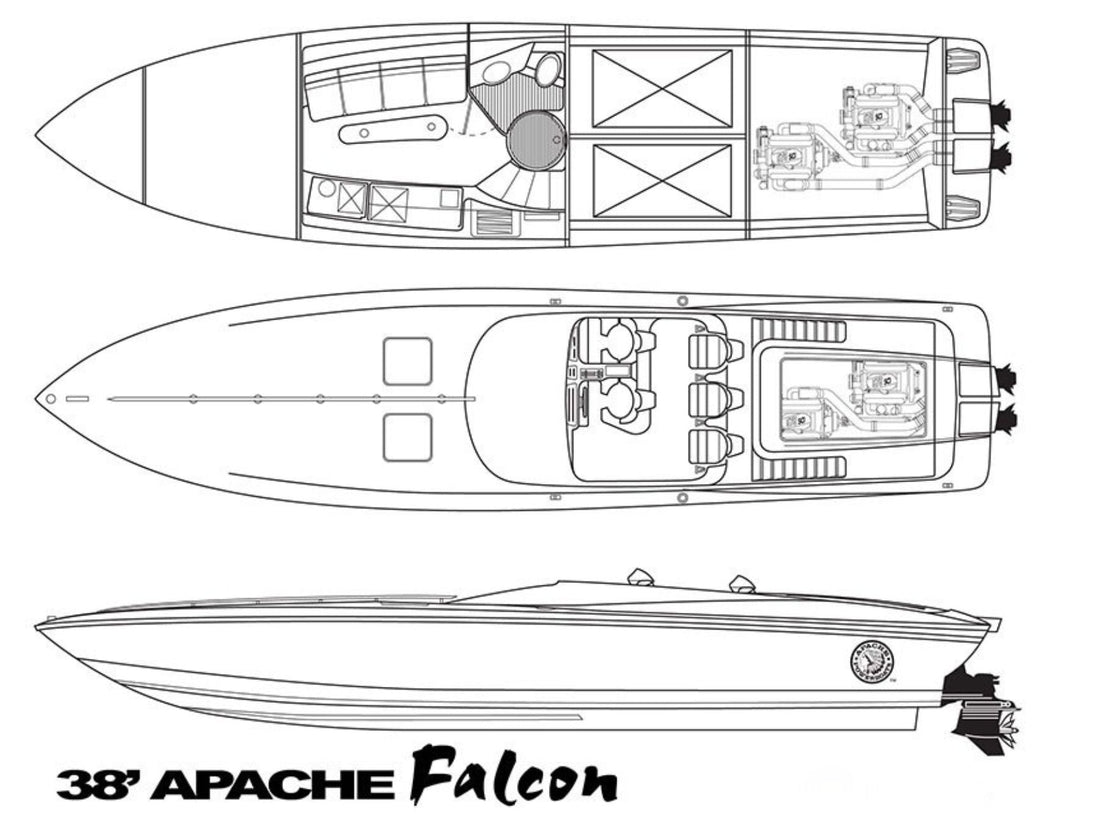

38′ Apache® FalconFalcon

Precision-built for offshore performance.

Stand-upHalf cabin5-person cockpit

LOA: 38′ 2″
Beam: 8′ 2″
Fuel: 230 gal.
Draft: 34″–40″
Power: Twin Mercury Racing · 565–700 HP

Precision-built for offshore performance.

38′ Falcon

The Apache® Falcon is a 38-foot powerboat engineered for speed, agility, and all-day adventure. With a high-performance hull design derived from Apache’s World Champion 41’ and 47’ models, the Falcon delivers legendary handling and top-tier durability in rough water.

Outfitted with twin staggered Mercury Racing engines and featuring a 5-person stand-up cockpit, the Falcon is the ideal offshore day boat for serious boaters. Its half cabin includes a stainless galley and optional enclosed head—perfect for long days on the water.

The Falcon’s transparent engine hatch showcases both power and craftsmanship, highlighting the boat’s meticulous build and commitment to performance.

Specifications

LOA: 38′ 2″ (11.63 m)
Beam: 8′ 2″ (2.48 m)
Fuel Capacity: 230 gal. · 3 tanks (870.39 L)
Draft (Stern Drive Down): 34″–40″ (86.36–101.6 cm)
Displacement (Estimated): 9,600 lbs. (4,354 kg)
Deadrise: 24°

Engine Options

Choose from high-performance Mercury Racing configurations.

Twin 565 HP with Bravo One XR ITS outdrives
Twin 600 HP with Bravo One XR ITS outdrives
Twin 700 HP with Dry Sump M6 outdrives

Features & Equipment

Construction & Performance

Hand-laid 100% Kevlar® composite with vinylester resin
McManus custom weave design and high-density coring
Kevlar-bonded hull and deck for superior strength
3-Year limited hull warranty
Built to exceed expectations in high-speed offshore conditions
Carbon Fiber composite options available

Standard Features

Stainless steel fasteners and cleats throughout
Heavy-duty aluminum fuel tanks, baffled and bolted
Mercury Racing engine race mounts and hydraulic steering
Custom aluminum dash panels, laser-engraved and anodized
Fiberglass automatic engine hatch with clear viewing panel
Removable marine-grade cockpit flooring and carpet
Mercury 280 Sport K-Planes trim system
Stainless propellers, silencers, and sea strainers
JL Audio Fusion entertainment system (6 speakers total)

Cockpit & Cabin Design

Stand-up bolsters and rear bench seating for 5 to 6 occupants
Centerline helm with premium Mercury Racing gauges
Cabin with removable carpet, LED lighting, and storage
Galley with stainless sink, AC/DC refrigerator, and cabinetry
Optional enclosed head and cockpit sun pad
Removable cooler, 110v outlet, freshwater tank with pump
Handrails, and cockpit courtesy lighting included

Instrumentation & Electrical

Dual tachometers, oil pressure/temp, fuel pressure, hour meters
GPS speedometer, voltmeters, trim indicators, and depth finder
Heavy-duty Optima marine batteries with 20 amp onboard charger
Parallel solenoids, distribution switches, and locking terminals
Color-coded marine-grade (UL) wiring with diagram legend
Mercury Racing Vessel view
Garmin Chartplotter

Safety Equipment

Fireboy FE-241 automatic fire suppression system
Handheld fire extinguishers and flare kit
Aluminum anchor system with coated chain and nylon line
Type 3 performance vests (6 included)
Navigation lights, Raymarine compass, and Icom VHF marine radio

Built for Speed. Designed for Adventure.

The Apache® Falcon stands as the next evolution in high-performance powerboats—purpose-built for those who demand strength, speed, and control on open water. Every detail reflects Apache’s commitment to craftsmanship, offshore heritage, and racing pedigree.

30′

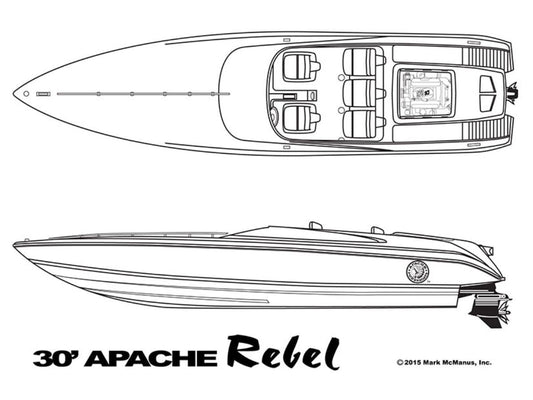

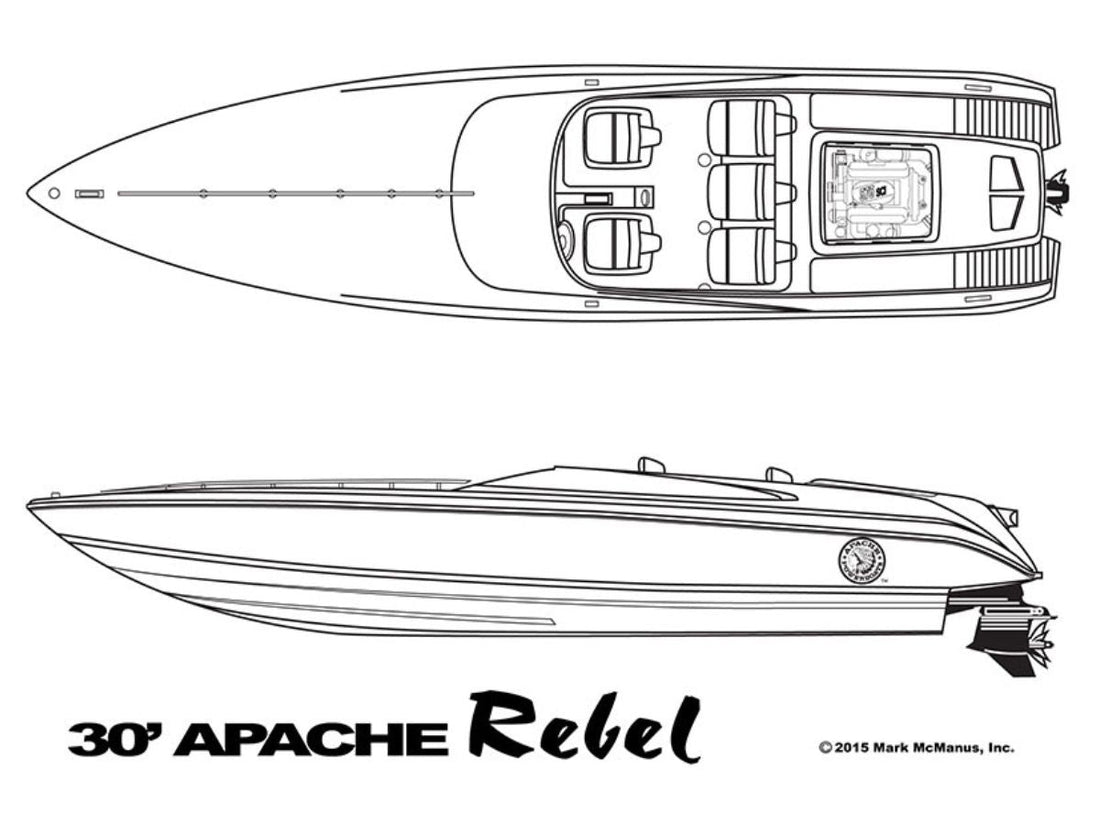

30′ Apache® RebelRebel

Refuses to be categorized.

5 passengers

LOA: 30′ 0″
Beam: 8′ 6″
Fuel: 130 gal.
Draft: 34″
Power: Single or twin Mercury Racing

Refuses to be categorized.

30′ Rebel

The Apache® 30’ Rebel refuses to be categorized. This revolutionary model brings signature Apache performance to a new level of visibility—literally. Purpose-built for 5 thrill-seeking passengers, the Rebel offers bold styling and unmatched control in a 30’ class boat. It’s the perfect balance of precision engineering, affordability, and raw Apache attitude.

Whether you’re powering across rough offshore chop or showing off at the dock, the Apache® Rebel delivers a riding experience that outclasses anything else in its category.

Specifications

LOA: 30′ 0″ (9.14 m)
Beam: 8′ 6″ (2.59 m)
Fuel Capacity: 130 gal. · 2 tanks (491.9 L)
Draft (Stern Drive Down): 34″ (86.36 cm)
Displacement (Estimated): 7,500 lbs. (3,402 kg)
Deadrise: 24°

Engine Options

Twin Mercury Racing 520 with Bravo One XR ITS Drives
Twin Mercury Racing 565 with Bravo One XR ITS Drives
Twin Mercury Racing 600 SCi with Bravo One XR ITS Drives
Twin Mercury Racing 700 SCi with M6 Outdrives
Single Mercury Racing (Larger Racing Engine Packages Available)

Features & Equipment

Construction Features

Hand-laid Kevlar 49 and 12K Carbon Fiber
High-density coring
Bonded hull and deck
3-year limited hull warranty

Standard Equipment

Custom molded automatic engine hatch
Mercury Racing engine mounts, race-grade (steel, front and rear)
Anodized, laser-engraved aluminum dash panels
Aluminum powder-coated battery boxes (2)
LED-lit engine room with Awlgrip finish
Mercury stainless steel propellers
Billet fuel filters with water separators
Aeromotive electric fuel pumps
Heavy-duty baffled aluminum fuel tanks with stainless steel pickups
Race hydraulic steering system
Stainless steel sea strainers, silencers, and engine tie-bar
Tonneau cockpit/engine room cover (Acralon custom fit)
Mercury 280 Sport K-Planes trim system
Optional sun pad available

Cockpit

Forward racing bolsters and rear bench seating for 5–6 passengers
Marine-grade rubber flooring and removable cockpit carpet
Custom aluminum handrails and removable ice cooler
LED courtesy lighting
Fusion stereo system
Storage for dock lines, anchor, and fenders

Instrumentation

Autometer custom anodized gauges (white, silver, or black face)
Twin tachometers, hour meters, oil temp/pressure, fuel pressure, and voltmeters
GPS speedometer, depth finder, and trim indicators
Digital engine warning system
Fuel level for 2 tanks

Deck Rigging

Recessed stainless steel cleats (8)
Powder-coated deck rail
2″ flush stainless fuel fills (2)
Optional rigid vinyl rubrail insert

12V DC Electric System

Dual marine batteries
Automatic 20-amp battery charger with 25’ shore power cord
Parallel solenoid + distribution switches
Marine-grade, color-coded wiring with nylon-insulated connectors

Navigation & Safety

VHF marine radio
Digital compass
Fortress aluminum anchor with 100’ braided line
Lifeline Type 3 high-performance vests (5)
Fireboy FE-241 automatic engine room fire suppression
Dual handheld fire extinguishers
LED nav lights, air horns, flare kit, fog bell

24′

24′ Apache® SpeedsterSpeedster

Compact. Custom. Uncompromising.

Outboard or inboard3 cockpit layouts

LOA: 24′ 0″
Beam: 8′ 0″
Fuel: 90 gal.
Draft: 36″
Power: Outboard or inboard/outboard

Compact. Custom. Uncompromising.

24′ Speedster

Introducing the most maneuverable Apache® ever created—the 24’ Speedster. This sleek, high-performance powerhouse marks a bold new chapter in Apache® Powerboats’ legacy of innovation. Purpose-built for thrill seekers, collectors, and discerning drivers, the Speedster is both an accessible entry point and a race-bred machine designed to dominate.

With its legendary deep-V hull—engineered by the same craftsmen behind the U.S. to Cuba world speed record—the Speedster offers exceptional performance in rough water, blending stability and speed with a ride smooth enough for the whole family.

Specifications

LOA: 24′ 0″ (7.3 m)
Beam: 8′ 0″ (2.44 m)
Fuel Capacity: 90 gal. (340 L)
Draft (Stern Drive Down): 36″ (91.44 cm)
Displacement (Estimated): 4,500 lbs. (2,041 kg)
Deadrise: 24°
Passenger Capacity: 3–5 depending on configuration

Cockpit Configurations

Your Speedster. Your way. Choose from three distinct layout options:

3 seats with center wheel steering
4 seats with portside wheel steering
5 seats with portside joystick steering and optional touchscreen controls

Engine Options

Engine options include inboard/outboard or outboard configurations—built to suit your style of performance.

Features & Equipment

Construction Features

Hand-laid composite using marine biaxial and triaxial S-glass laminate
High-density foam coring
Composite stringers
Hull and deck bonded and glassed together
5-year limited hull warranty

Cockpit

Custom Sunbrella Acralon tonneau cover
Removable marine-grade cockpit carpet
Finished cabin storage area
Recaro® shock-mounted racing seats
MerCruiser deluxe single-lever control with integrated trim
Fusion MS-AV750 stereo with DVD/CD/HDMI/Bluetooth
JL Audio 6.5” speakers (4)
LED courtesy lights (4)
Billet aluminum grab bars
Hydraulic tilt steering wheel
Removable cooler and ample storage for gear and safety equipment

Mechanical Equipment

Mercury Racing 4-blade stainless steel propeller
Heavy-duty billet aluminum Optima battery box
Bilge pumps: Rule 2000 Gold Series (2)
Baffled aluminum fuel tank with stainless pickups (1)
Internal hydraulic steering system (inboard or outboard)
Mercury 280 Sport K-Planes trim system
Electric automatic engine hatch (inboard)
Powder-coated aluminum engine compartment
Fireboy MA2 fire extinguishing system (inboard models)

Console & Instrumentation

Autometer competition-grade gauges with anodized bezels.

Tachometer
Speedometer
Oil pressure
Voltage
Water pressure
Fuel level
Depth finder
Trim indicator
Digital compass
Engine alarms (oil & water)
12V accessory plug

Deck Rigging

Pop-up cleats (3), fender cleats (4), spring cleats (2)
Tempered Venturi windshield
Stainless bow/stern eyes and thru-hull fittings
Rigid vinyl rub rail
Flush fuel fill and vent

Electrical System

Optima marine battery with distribution switch
Custom toggle switch panel
Marine-grade UL tinned copper wiring, color-coded with legend
Nylon-insulated locking terminals

Navigation & Safety

Icom VHF marine radio
Concealed electric horn and handheld Alpex 12V air horn
LED international navigation lights
Flare kit, fog bell
Lifeline high-performance jackets (1 per seat)
Cockpit-mounted 1A-10BC fire extinguishers (2)
Fortress aluminum anchor with chock mount
Four rack-mounted fenders
Six color-coordinated dock lines
Type 4 throwable foam cushion

Ride the Legacy

The Apache® 24 “Speedster” isn’t just a tender—it’s a statement. Whether you’re flying solo, bringing friends, or introducing the next generation to powerboating, this model captures the spirit of Apache® performance in a refined, ready-for-anything package.

Join the Apache® legacy. Ride the next wave of innovation and feel the difference precision craftsmanship makes at every speed.

Compare the Line

Core dimensions for every model. Tap a name for the full spec sheet.

LOA	Beam	Fuel	Draft	Displacement	Deadrise	Power
50′ 6″(15.39 m)	8′ 2″(2.48 m)	450 gal. · 5 tanks(1702.9 L)	54″(137.16 cm)	Not listed	Not listed	Teague or Mercury · twin or triple
47′ 2″(14.37 m)	8′ 2″(2.48 m)	460 gal. · 5 tanks(1740.8 L)	54″(137.16 cm)	15,300 lbs.(6,940 kg) · twin engine	24°	Teague or Mercury · twin or triple
47′ 2″(14.37 m)	8′ 2″(2.48 m)	450 gal. · 5 tanks(1702.9 L)	54″(137.16 cm)	15,700 lbs.(7,121 kg)	24°	Teague or Mercury · twin or triple
42′ 3″(12.87 m)	8′ 2″(2.48 m)	300 gal. · 3 tanks(1135.3 L)	42″(106.68 cm)	11,250 lbs.(5,103 kg)	24°	Twin Mercury Racing · 700 or 1100 HP
42′ 3″(12.87 m)	8′ 2″(2.48 m)	300 gal. · 3 tanks(1135.3 L)	42″(106.68 cm)	11,250 lbs.(5,103 kg)	24°	700 or 1100 HP
42′ 3″(12.87 m)	8′ 2″(2.48 m)	300 gal. · 3 tanks(1,135.3 L)	42″(106.68 cm)	11,300 lbs.(5,125 kg)	24°	Twin Mercury Racing · 700 HP and up
38′ 2″(11.63 m)	8′ 2″(2.48 m)	225 gal. · 2 tanks(851.47 L)	40″(101.6 cm)	8,600 lbs.(3,900 kg)	24°	Twin Mercury Racing · 565–700 HP
38′ 2″(11.63 m)	8′ 2″(2.48 m)	230 gal. · 3 tanks(870.39 L)	34″–40″(86.36–101.6 cm)	9,600 lbs.(4,354 kg)	24°	Twin Mercury Racing · 565–700 HP
30′ 0″(9.14 m)	8′ 6″(2.59 m)	130 gal. · 2 tanks(491.9 L)	34″(86.36 cm)	7,500 lbs.(3,402 kg)	24°	Single or twin Mercury Racing
24′ 0″(7.3 m)	8′ 0″(2.44 m)	90 gal.(340 L)	36″(91.44 cm)	4,500 lbs.(2,041 kg)	24°	Outboard or inboard/outboard

Built to order

Build Your Apache

Every boat starts with a conversation. Tell us which model you have in mind and how you plan to run it, and we'll take it from there.

Call us

239.454.1114
