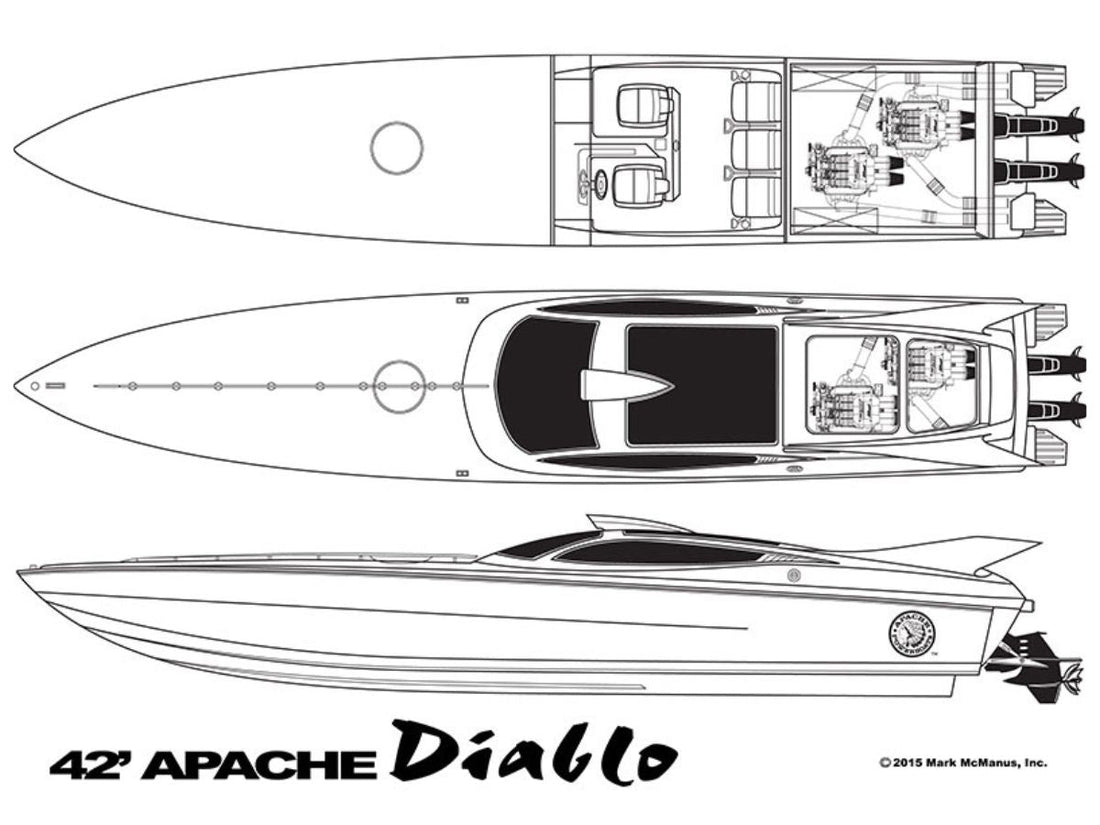

42′ Apache® Diablo

42′ Apache® Diablo

42′ Apache® Diablo

A Beast of Balance, Speed, and Style

The 42′ Apache® Diablo is a 5-person sit-down performance machine built for dominance and comfort. Its sleek low-profile design slashes wind resistance, allowing it to cut through offshore conditions with aggressive acceleration and commanding stability. The Diablo combines raw twin-turbo power with racing pedigree, wrapped in signature Apache® craftsmanship. This is the boat that doesn’t blink in the face of a storm. Sit down, hold tight, and take control.


Specifications

LOA: 42′ 3″ (12.87 m)

Beam: 8′ 2″ (2.48 m)

Fuel Capacity: 300 gal. | 3 tanks (1135.3 L)

Draft (Stern Drive Down): 42″ (106.68 cm)

Displacement (Estimated): 11,250 lbs. (5,130 kgs)

Deadrise: 24°




Engine Options

  • Twin Mercury Racing, 700 HP, dry sump M-6 drives

  • Twin Mercury Racing, 1100 HP twin turbo, dry sump M-8 drives


Construction Features

  • 100% Kevlar49 composite, hand-laid with vinylester resin

  • McManus custom weave and high-density cored lamination

  • Kevlar-bonded hull and deck

  • 3-year limited hull warranty


Standard Equipment

  • Engine hatch: fiberglass molded with automatic lift

  • Billet Optima battery boxes (2), anodized and powder coated

  • Bilge blowers (2) and Rule 2000 bilge pumps (3)

  • Dash panels: anodized, polished aluminum, laser engraved

  • Engine room: finished in Awlgrip with LED lighting

  • Mercury Racing engine race mounts (2)

  • Stainless steel tie-bars, fasteners, and silencer

  • Teague billet fuel filters, Aeromotive fuel pumps (2)

  • Fuel tanks: aluminum, baffled, foam-secured (3)

  • Mercury 5-blade stainless props (2)

  • Sea strainers: stainless steel (2)

  • Hydraulic racing steering

  • Mercury 280 S K-Planes

  • Optional composite V-Tail

  • Acrylic tonneau cover for cockpit and engine room

  • Step-notch transom with pad keel


Cockpit Features

  • Recaro front and rear racing bolsters

  • Seating for 5, LED courtesy lighting

  • JL Audio stereo with 6 acoustic speakers

  • Marine-grade rubber flooring, removable cockpit carpet

  • Billet handrails, port-side helm

  • Ice cooler and dock line storage

  • Optional sun pad




Mechanical Instruments

  • Autometer anodized, laser-engraved gauge bezels

  • Choice of black, white, or silver face

  • Gauges include:

    • Tachometer (2), Hour Meter (2)

    • Oil Temp & Pressure (2 each)

    • Fuel Pressure (2), Fuel Level (3-tank system)

    • Water Temp (2), GPS Speedometer

    • Trim Indicator, Voltmeter (2)

    • Depth Finder (digital)

    • Engine Warning System (2)




Deck Rigging



  • Stainless steel recessed cleats (8)

  • Powder-coated deck rail

  • Flush stainless steel 2″ fuel fills (3)

  • Neoprene rub rail in white or black





12 Volt DC Electric



  • Dual Optima marine batteries

  • 30 amp battery charger with 25′ shore cord

  • Parallel solenoid and distribution switches

  • Marine-grade, UL-rated, color-coded wiring

  • Nylon-insulated, locking connectors





Navigation and Safety



  • Icom VHF marine radio

  • Raymarine digital compass

  • LED navigation lights, Alpex 12 v. horn

  • Watsco handheld air horn, flare kit, fog bell

  • Lifeline Type 3 performance vests (6)

  • Fireboy FE-241 automatic suppression system

  • Two handheld extinguishers (cockpit mounted)

  • Anchor: Fortress aluminum with coated chain and 100′ braided line

  • Dock lines: double braided nylon (8), color choice

  • Throwable Permafloat cushion
